Carbide Wear Parts

K20 Squared Tungsten Carbide Wear Block With High Wear Resistance

K20 Squared Tungsten Carbide Wear Block With High Wear Resistance

Place of Origin： Zhuzhou, Hunan
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： ZF-P56
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcoem to contact me

Sharon Chen

Email:sharon@xtjqxcl.com

Mobile/Whatsapp: 0086-18973341595(wechat/whatsapp)

Skype:

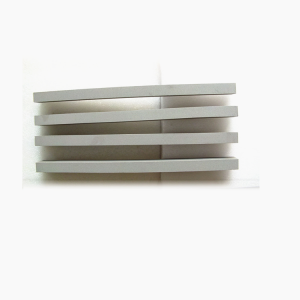

K20 Squared Tungsten Carbide Block With High Wear Resistance

Application of our tungsten carbide block:
1. tungsten carbide square bar are uswed for cutting metal, wood and other material
2. It is suitable for making discharge plate, stamping die, punch, electronic progressive die and other stamping die

Recommanded Grades For Your Reference

Grade	Density g/cm3	Hardness HRA(hv)	T.R.S (M Pa)	Performances &applications recommended
YG6	14.9	90	2150	Good Wear resistance, used for hard wood, processing original wood,aluminum section bar, brass rod and cast iron.
YG8	14.6	89.5	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG6A	14.9	92	1850	fine grade alloy, with good wear resistance, used for processing blade, wear resistance parts, etc.
YG15	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YG20	14	85	2500	Medium grain, for stamping dies of Instrument leaf spring, battery shell, toothpaste, screw nut
YL10.2	14.5	92.5	3400	Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.

Detail Information

1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co
2. Specification: 150*150*10mm. 195*195*20mm, according to customer requirement
3. Property:high hardaness,good wear-resistance,long lifetime
4. Surface:Grinding or blank
5. Grade: YG8/YG6/YG6X/YG15...
6. Length of Tungsten Carbide Plate: 10.0 mm to 400 mm; Width: 10.0 mm to 400 mm
7. Thickness: 1.0 mm to 100.0 mm

Some size list:

L	W	S
200	200	10-45
150	150	10-45
150	130	10-45
150	100	10-45
150	80	10-45
120	120	10-45
100	100	10-50
100	50	10-50
100	45	10-50
80	55	10-50
80	40	10-40
70	35	5-40
45	25	5-20
35	19	5-20
20	20	5-20
18	13	5-20
.....	...	...

All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.
Advantge of Our tungsten carbide block
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable
Our more Products

1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
