YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire

YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire

Place of Origin： China
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： ZF00111
Minimum Order Quantity:10 pcs
Price:USD 55-65/kg
Delivery Time:7-15 days
Payment Terms:100% TT before shiping
Supply Ability:100000 pcs/month

YG15 Cemented Carbide three dimensional roll rings for Cold Rolling Ribbed Wire

If have any more information, please feel free to contact with us.

Contact

Sharon Chen

Mobile/Whatsapp: 0086-18973341595(wechat/whatsapp)

Email address:sharon@xtjqxcl.com

Website:www.qcarbide.com

Cold rolled ribbed bar with Top carbide three dimensional rolls roll, which rib accuracy and mark clear, at same time to improve the performance of steel, enhance the strength. It makes sure that the quantity of a rolling reach to 800-1500 tons. Carbide rolls can be repaired repeatedly, and greatly reduces the production cost, significantly improves the efficiency.

Recommended Grade: ZF30/ZF40

Grade	Grain size(um)	Density(g/cm³)	Hardness(>=HRA)	TRS(>=MPA)
ZF30	1.6	14.03	87.0	3000
ZF40	1.6	13.85	86.2	3100

ZF30:Used for rolling cold rolled ribbed steel bar.

ZF 40:Used for rolling cold rolled ribbed steel bar with strong strength.

ZF Carbide Three Dimension Ring Available Size:

	Dimension(mm)
Size	Diameter	Bore	Height
CR-1258215	125	82	15
CR-140.89015	140	90	15
CR-1459515	145	95	15
CR-145.89015	145	90	15
CR-1509015	150	90	15
CR-1509515	150	95	15
CR-18012518	180	125	18

Finished size (mm):

Radial run-out of groove	Radial run-out of periphery	End face runout	Surface parallelism	Inner hole cylindricity
0.013	0.013	0.01	0.01	0.01

Finished size with the tolerance(mm):

OD	Tolerance	ID	Tolerance	H	Tolerance
<=125	+0.015/+0.015	<=90	0.0/+0.02	<=20	-0.01/+0.01
>125~180	+0.015/+0.015	>90~95	0.0/+0.02	>20	-0.01/+0.01
>180~250	+0.015/+0.015	>95	0.0/+0.02	----	-0.01/+0.01
>250	+0.015/+0.015	-----	0.0/+0.02	-----	-0.01/+0.01

Our service

1:Before order: give you detailed quote and technology consulting.

2:Order processing: offer the manufacturing process regular.

3:After Sale: send all test certificate, follow up the goods usage.

Our more Products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

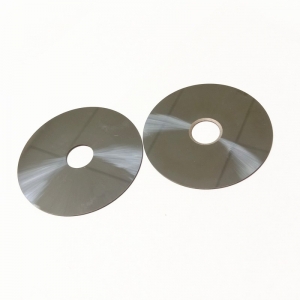

6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS Abby Pan,Fedex,DHL,or by sea,as you request.
