Carbide Wear Parts

OEM & ODM Carbide Wear Parts Tungsten Rod Bar Plate Strip Cemented Flat Sheet

Place of Origin： China
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： YG6, YG8,YL10.2, YG15
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:10000000 pcs/month

OEM & ODM Carbide Wear Parts Tungsten Rod Bar Plate Strip Cemented Flat Sheet

Tungsten carbide strips/plates/bars/sheets/blocks are made from 100% virgin raw materials. They’re square and rectangle shapes and customized shape.

They are used in wide application field. They’re very good material to produce the parts to resist high temperature & corrosion, also widely used as wear parts, shielding parts, mold core, insert, special shape punch and so on, for cutting cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc.

Various grades and sizes can be chosen.

Features:

1. 100% virgin raw material

2. High hardness, excellent wear-resistance

3. High elastic modulus and compressive strength

4. Stable chemical properties

5. Blanks, precision grinded and polished

6. Various sizes and grades

7. Factory’s offer

8. Strict products quality inspection

Application:

Mainly used in vertical shaft impact crusher (sand making machine), with high performance and high efficiency of sand making and shaping. A variety of crushing forms (stone-to-stone, stone-to-iron) to meet different crushing needs of users. Rotor with stone-stone structure-suitable for crushing sand for hard and extremely hard materials, and shaping various soft and hard materials.
It can adjust the level of stone powder content, which is suitable for the requirements of high stone powder content in grinding jade concrete, and the requirements of low stone powder content for ordinary concrete. The stone iron rotor is used-suitable for the crushing of materials below medium hardness, with high crushing efficiency, Features such as high sand production rate and easy adjustment of fineness modulus.

1. Adapt to different material crushing requirements of users. Such as: granite, basalt, limestone, quartzite, gneiss, cement
clinker, concrete aggregate, ceramic raw materials, iron ore, gold ore, copper ore, corundum, bauxite, silica, etc.
2. Compared with other materials, it has the advantages of good comprehensive performance, high reliability, strong wear
resistance, and low price!
3. The length of the alloy bar can be customized according to the specifications of the throwing head, and the service life of
each pair of alloys can reach 40-70 hours.

Feature:

1: Excellent thermal stability and high-temperature resistance to deformation.

2: The mechanical temperature is high at high temperatures.

3: Good thermal shock resistance.

4: High thermal conductivity.

ISO Grade	Co%	Density(g/cm3)	Hardness	Bending Strength(N/mm2)	Compression Strength(N/mm2)	Grain Size(μm)
ISO Grade	Co%	Density(g/cm3)	HRA (ISO3738)	Bending Strength(N/mm2)	Compression Strength(N/mm2)	Grain Size(μm)
E10S	6	14.8	90.5	2900	5100	4.0
E20S	13.5	14.0	90	3600	5200	1.5
E30	12	14.25	90	3500	4900	1.8
E40	12.5	14.1	89.5	3600	4600	2.0
E50	14.0	14..0	88.5	3700	4500	2.0
E60	15	13.9	87.5	3500	4200	<0.5

Specification:

L	W	S
200	200	10-45
150	150	10-45
150	130	10-45
150	100	10-45
150	80	10-45
120	120	10-45
100	100	10-50
100	50	10-50
100	45	10-50
80	55	10-50
80	40	10-40
70	35	5-40
45	25	5-20
35	19	5-20
20	20	5-20
18	13	5-20

Our more products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Quality control:
1.All raw materials are tested in terms of density, hardness and TRA and HV30 before use
2.Every piece of product goes through in-process and final inspection
3.Every batch of product can be traced

Our Guarantee
1. Competitive price , but good performance.
2. Press by CIP and Sintered in HIP furnace
3. Feedback within 24 hours. More details, please contact us skype/whatsapp: +86-13307338220
4. ISO9001: 2008 certificate professional manufacturer over 20 years
5. Fully adopted in advance technology and equipment.
6. Quality Control System and strict inspection.

7. OEM and ODM are accepted as well.

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS Abby Pan,Fedex,DHL,or by sea,as you reques

Zhuzhou Top carbide Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication

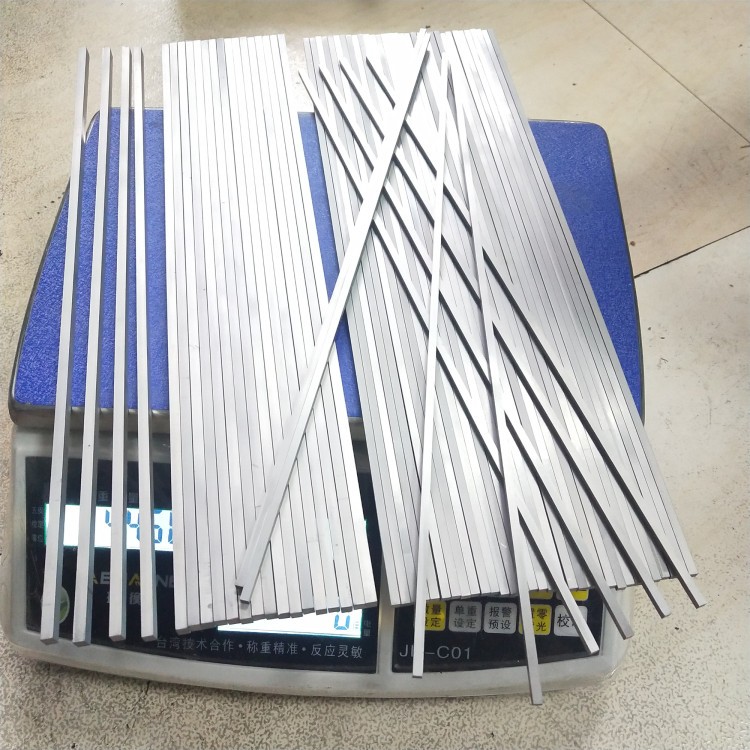

High hardness blank tungsten carbide strip/flat bar/plate 3x3x330mm(图2)

If have any more information, please feel free to contact with me.

Contact information

contact person: Sharon Chen

mobile number +86 18973341595

email address: sharon@xtjqxcl.com

website:www.qcarbide.com
