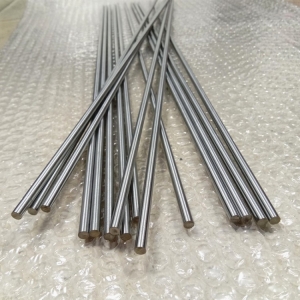

Ground Tungsten Carbide Rod

10% Cobalt Tungsten Carbide Metal Rod With One Central Hole For Making Carbide Tools

10% Cobalt Tungsten Carbide Metal Rod With One Central Hole For Making Carbide Tools

Place of Origin： Zhuzhou, Hunan
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： ZF-RT853
Minimum Order Quantity:10 pcs
Price:Negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

10% Cobalt Tungsten Carbide Metal Rod With One Central Hole For Making Carbide Tools

1. The ideal grade for every application
Our wide and innovative grade range satisfies the exacting demands of the modern precision tooling industry. You can find the ideal grade specific to all materials and applications.
2. Acknowledged quality
Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for consistent performance capacity of your tools.
3. Extensive Product Dimension available in Stock
We offers you a wide range of dimensions, features and capabilities.
4. Application
Our carbide rods are used for cutting aluminum alloy ,cast iron , stainless steel, Refractory alloy steel, nickel-based alloy , titanium alloy and nonferrous materials,For making drills , drills , end mills &reamers , mold punches , core pins&hole drilling tools
We can supply all kinds of dimensions solid carbide rods with fine&sub micron grain size We manufactured and stocked many dimensions of ground and unground carbide rod for your. We have a large range of grade for your choice. We also can develop grade based on your application.

Applications of material:

◆ Cast iron

◆ Stainless steel,Heat-resistant steel,Hardened steel(hardness<60HRC)

◆ Nickel-based, Titanium alloys

5. Various types
Solid rods
Single Central hole rods
Double parallel hole rods
Double helical 30° 40° hole rods
Chmafered rods
One side chamfered with weldon shank rods
Special customized rods

Material information

Grade		YL10.2 (K25-K35)
Co	%	10
WC	%	90
Density	g/cm³	14.5
HV30	kg/mm²	1600
Hardness	HRA	92.5-92.8
Bending Strength	N/mm²	>3800
Porosity	A B C	A02B00C00
WC Grain Size	μm	0.6

Production Process of Tungsten Carbide Rod:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Various grade for your choice

Grade	YL10.2	YG6	YG6X	YG10X	YG8	YG15
ISO Range	K25-K35	K20	K10	K35	K30	K40-K50
WC+others %	90	94	94	90	92	85
Co %	10	6	6	10	8	15
Grain Size μm	0.6	0.8	0.6	0.6	0.8	0.8
Density g/cm3	14.5	14.9	14.9	14.5	14.6	14.1
Hardness HRA	92.5-92.8	89.5	92	90	89	86.5
T.R.S N/mm2	3800-4000	2150	2000	2200	2200	2400

Grade	Application
YL10.2	ultra-fine grain WC+ 10% Coblat, with good Wear resistance and Toughness, strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
YG6	Fine Grain WC+6% Cobalt, with Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG6X	ultra-fine grain size with cobalt 6%,with good wear resistance,Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YG10X	ultra-fine grain WC+ 10% Cobalt, suitable for small diameter Micro drill ,vertical milling cutter, rotating file
YG8	fine GrainWC+ 8% Cobalt Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG15	fine grain WC +15% Cobalt for mining tools, cold heading and punching dies

Production Advantages

1.Using over 99.95% high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.
2. Using ultrafine grain size of tungsten carbide powder to produce,Hardness can reach to HRA93.6, Bending strength can reach to 4000N/mm²
3.Tolerance can reach to ±0.001mm, straightness can reach to ±0.02mm

4. Customization is acceped

Part of our carbide rod Size List

10% Cobalt Tungsten Carbide Metal Rod With One Central Hole For Making Carbide Tools(图1)

D	DTol	d	dTol	L	Tol
mm	mm	mm	mm	mm	mm
2.5	+0.20～0.50	0.3	±0.05	330	0～+5.0
4.0	+0.20～0.50	1.0	±0.05	330	0～+5.0
6.0	+0.20～0.50	1.0	±0.05	330	0～+5.0
8.0	+0.20～0.50	1.5	±0.05	330	0～+5.0
10.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
12.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
14.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
16.0	+0.30～0.60	2.0	±0.05	330	0～+5.0
18.0	+0.40～0.80	3.0	±0.05	330	0～+5.0
20.0	+0.40～0.80	3.0	±0.05	330	0～+5.0
22.0	+0.40～0.80	3.0	±0.05	330	0～+5.0
24.0	+0.40～0.80	4.0	±0.05	330	0～+5.0
26.0	+0.40～0.80	5.0	±0.05	330	0～+5.0
15	+0.40～0.80	6	+-0.5	550max	0～+5.0
22	+0.40～0.80	10	+-0.5	550 max	0～+5.0
25	+0.40～0.80	12	+-0.5	500	0～+5.0
