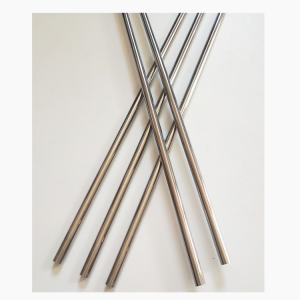

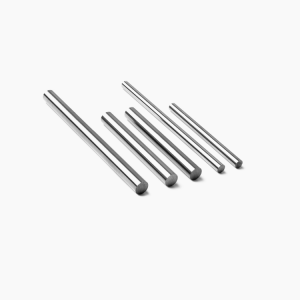

Hyperfine solid tungsten carbide rod D0.5x100mm

Hyperfine solid tungsten carbide rod D0.5x100mm

Place of Origin： China
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： YG6, YG8, YG10X, YL10.2, YG12X, YG15X etc
Minimum Order Quantity:1000pcs
Price:USD 55-65/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:10000000 pcs/month

Hyperfine solid tungsten carbide rod D0.5x100mm

Size: 0.6mm x100mm Tungsten carbide rod(size can be customized)

Grade: YL10.2

Material: Tungsten Carbide
Application: wearing parts
Hardness: HRA91
Strength: > 690Mpa
Advantage: high ware-resistance.
Applications of Solid Tungsten Carbide Rods
solid tungsten carbide rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel-based alloy, titanium alloy, and nonferrous metals. Various carbide grades with stable properties have been widely recognized by worldwide makers of tools. Besides, solid tungsten carbide rods are widely used processed as HSS Cutting tool, carbide end mills, carbide cutting tool, NAS cutting tool, carbide end mill, aerospace cutting tool, carbide drill, high speed steel, milling cutter
Core drill, tapered end mills, metric end mills, miniature end mills, pilot reamer, electronics cutter, step drill, metal cutting saw, double margin drill, gun barrel, angle milling cutter, carbide burrs, carbide tipped cutter.

Advantge of Our tungsten carbide rod
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable

Detail Production Information:

Key Features:

1.High melting point (3410°C)
2. low thermal expansion
3.High resistance
4. Vapor pressure is low
5. Good thermal conductivity
6. High density

Application:
1.Suitable for the production of ion implantation parts
2.production of electric light source parts and electric vacuum parts and elements and refractory parts
3.used as heating elements and refractory parts in high temperature furnaces
4.Used as electrode for rare earth metal industry
5.Electrode in the field of equipment and processing technology or in the lighting industry.
Recommanded grades for your reference

Grade	ISO Range	Cobalt%	Density g/cm3	Hardness HRA
YG8	K30	8	14.8	89.5
YG6	K30	6	14.95	90.5
YG6X	K10	6	14.95	91.5
YL10.2	K30	10	14.5	91.8
YG15	K40	15	14	87.5

Common size list

Grinding			Blank
D		L	D		L
(mm)	Tol.(mm)	Tol.(+1mm)	(mm)	Tol.(mm)	Tol.(+3mm)
0.7	h6	330	1	+0.2	330
2	h6	330	2.2	+0.2	330
3	h6	330	2.7	+0.2	330
3.175	h6	330	3.2	+0.2	330
4	h6	330	3.7	+0.2	330
5	h6	330	4.2	+0.2	330
6.35	h6	330	4.7	+0.2	330
7	h6	330	5.2	+0.2	330
8	h6	330	5.7	+0.2	330
9	h6	330	6.2	+0.2	330
10	h6	330	6.7	+0.2	330
12	h6	330	7.7	+0.3	330
12.7	h6	330	8.2	+0.3	330
13	h6	330	8.7	+0.3	330
14	h6	330	9.2	+0.3	330
15	h6	330	9.7	+0.3	330
16	h6	330	10.2	+0.3	330
17	h6	330	10.7	+0.3	330
18	h6	330	11.2	+0.3	330
20	h6	330	12.2	+0.3	330
25	h6	330	14.3	+0.3	330
30	h6	330	16.2	+0.3	330
