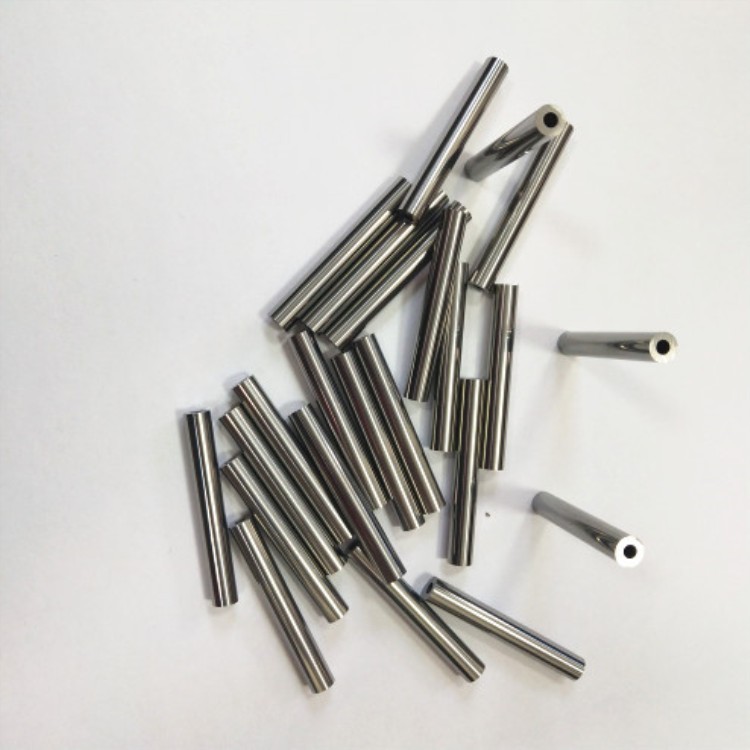

High temperature tungsten carbide tube pipe supplier
1.material:100%virgin WC+CO, WC+TiC+TaC+Co
2.Property:high hardaness,good wear-resistance,long lifetime
3. size: thickness:0.3-8mm
outer diameter: as required
length: as customers need
4. Merit:high point,resistance to acid and alkali,antioxidant,high pure.
5. Application:
Parts of Electric Light Source and Electron Tube
Medical Facilities
Obstruction of Radiation and Interference
Heat Shields of High Temperature Furnace
Heat Elements of High Temperature Furnace
Structures of High Temperature Furnace
Evaporation Boats
6. our advantage:
1. Competitive price.
2. Our strengths over other suppliers.
3. Reliable quality on the base of the same price.
4. Timely delivery as your requirements.
5. Professional service to cut much purchasing costs down.
YT5 has the best strength, impact resistance and seismic resistance, but poor wear resistance. It is suitable for roughing and semi-finishing of carbon steel and alloy steel (including forgings, stampings and cast iron skins) when they are cut intermittently.
YT14 has the advantages of high strength, good impact resistance and seismic resistance, nearly inferior to YT5 alloy, but its wear resistance is better than YT5. It is suitable for rough turning and rough milling of carbon steel and alloy steel in continuous cutting, semi-finishing turning and finishing turning in discontinuous cutting.
YG3X has the best wear resistance but poor impact toughness in tungsten cobalt titanium alloy. It is suitable for high-speed finishing of small sections of cast iron non-ferrous metal and its alloy, pyroclastic steel and alloy steel.
YG6 has higher wear resistance, but lower than YG3, better impact resistance and vibration resistance than YG3X. It is suitable for semi-finishing and finishing of cast iron, non-ferrous metals and alloys with medium cutting speed.
YG8 has higher strength, impact resistance and seismic resistance than YG6, but its wear resistance and allowable cutting speed are lower. It is suitable for low-speed rough machining of cast iron, non-ferrous metals and alloys.
Yd201 is suitable for semi-finishing, rough machining of cast iron and light alloy, and milling of cast iron and low alloy steel.
Yw1 has a good red hardness and can bear a certain impact load. It is a universal alloy suitable for the processing of refractory steel such as heat-resistant steel, high manganese steel and stainless steel, and also suitable for the processing of ordinary steel and cast iron.
ISO Grade | Co% | Density(g/cm3) | HV30
(kg/mm2) | HRA
(ISO3738) | Bending Strength(N/mm2) | Grain Size(μm) |
K05-K10 | 6 | 14.8 | 1860 | 93.5 | 3800 | <0.5 |
K05-K10 | 6 | 14.9 | 1510 | 91.4 | 3000 | 1.0 |
k20-K30 | 8 | 14.6 | 1700 | 92.7 | 3800 | 0.8 |
K30 | 8 | 14.8 | 1300 | 89.6 | 2500 | 1.2 |
K20-K30 | 10 | 14.5 | 1600 | 92.1 | 3800 | 0.7 |
K20-K30 | 12 | 14.1 | 1680 | 92.6 | 3800 | <0.5 |
M10 | 6 | 14 | 1600 | 92 | 3800 | 1.2 |
M20 | 8 | 13.1 | 1550 | 91.5 | 2000 | 1.2 |
Advantge of Our tungsten tube
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable
Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
Zhuzhou Top carbide Co.,LTD is a professional manufacturer in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture. We always pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools. Tungsten carbide rod and customized wear parts is our advantage
We always keep good relationship with our clients, enhancing communication and Cooperation to each other, trying to create WIN-WIN cooperation.
If have any more doubt, please feel free to contact with me.
Contact person:Sharon Chen
mobile phone:+86-18973341595
email address:sharon@xtjqxcl.com
website:www.qcarbide.com .com
