Tungsten Carbide Rods

Tungsten Carbide Composite Rods For Hardfacing

Tungsten Carbide Composite Rods For Hardfacing

Place of Origin： China
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： YG6, YG6X, YG8, YG10 etc
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

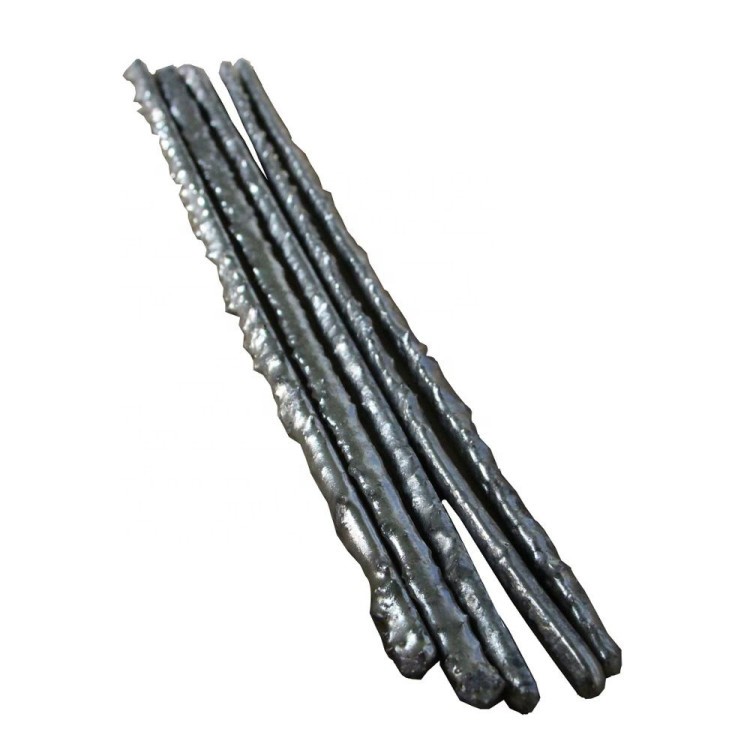

Tungsten Carbide Composite Rods For Hardfacing

Tungsten carbide welding rod,YD welding rod,tungsten carbide composite rod it is made of by sintering tungsten carbide scrap and elastic matrix alloy,Outer layer of the special flux and coloring is marking scrap grade,the composition of sintering tungsten carbide scrap is mainly CO and WC,The hardness is HRA 89~91,tire body matal is Ni and copper alloy,strength can up to 690MPa, hardness HB≥160.

Applications
Composite rod welding has been acknowledged throughout oil drilling, mining and construction industry worldwide for its extra hardness and high wear resistant properties. The use is even spreading to more industries and gets greater uses. Composite rod welding has wear and cutting properties coupled by high-end weldability and low fuming, allowing the material to use in  stabilizers, reamers, drill pipe joints, construction drilling, hydraulic-cutter, pipe cutter blades, core bit, scraper, twist drill, milling and grinding shoes etc.

High wear resistance YD copper tungsten carbide composite welding rods (图1)

- Tungsten Cemented Carbide Grade:

Grade	ISO Code	Chemical Component (%)			Grain size um	Physial Mechanical Properties (≥)
Grade	ISO Code	WC	Co	Others	Grain size um	Density g/cm3	Hardness (HRA)	T.R.S N/mm2
D10UF	K05-K15	93	6	1	0.6	14.70	93.0	2600
D30UF	K20-K30	89	10	1	0.6	14.50	92.0	3800
D30SF	K20-K30	89	10	1	0.5	14.40	92.5	4000
D40SF	K40	87	12	1	0.4	14.30	92.5	4200
DB10X	K20-K30	89	10	1	0.6	14.50	91.5	3800
DP12X	K30-K40	87	12	1	0.6	14.15	91.0	3300
DP13X	K40	86	13	1	0.8	14.10	90.5	4400
YG6	K05-K10	93	6	0	1.2	14.95	91.0	2600
YG6X	K10	93	6	0	1.0	14.95	92.0	2500
YG8	K20-K30	92	8	0	1.2	14.70	90.0	2800
YG10X	K30-K40	89	10	1	0.8	14.50	91.0	3500
YG15	K40	85	15	0	1.2	14.00	87.5	4500
YG25	--	75	25	0	1.2	13.15	82.5	4800

Our more Products
Tungsten Carbide rod
Tungsten Carbide Sealed Ring
Tugnsten Carbide Wear parts
Tugnsten Carbide Dies
Tungsten Carbide Non-standard parts
Tungsten Carbide Circular Blade

High wear resistance YD copper tungsten carbide composite welding rods (图2)

Why choose us ?
1.We are a real factory with very very nice wholesale price with high quality and good after sales service.
2.Rearch and development team with 5 members is rich experienced. OEM and label printing
orders are welcome.
3.The MOQ is 1pc.Sample and freight fee is borne by buyer.The sample fee will be reduced in
the next big quantity order.
4.Quick delivery time. We have carbide rods in stock. Delivery time within 3 days after your payment.If quantity is customized and large,delivery time is negociate.
