Tungsten Carbide Rods

Blank/ground thin solid 10% cobalt cemented carbide round rod for drilling hole

Blank/ground thin solid 10% cobalt cemented carbide round rod for drilling hole

Place of Origin： China
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： YG6, YG8, YL10.2 etc
Minimum Order Quantity:10000 pcs
Price:USD 55-65/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:10000000 pcs/month

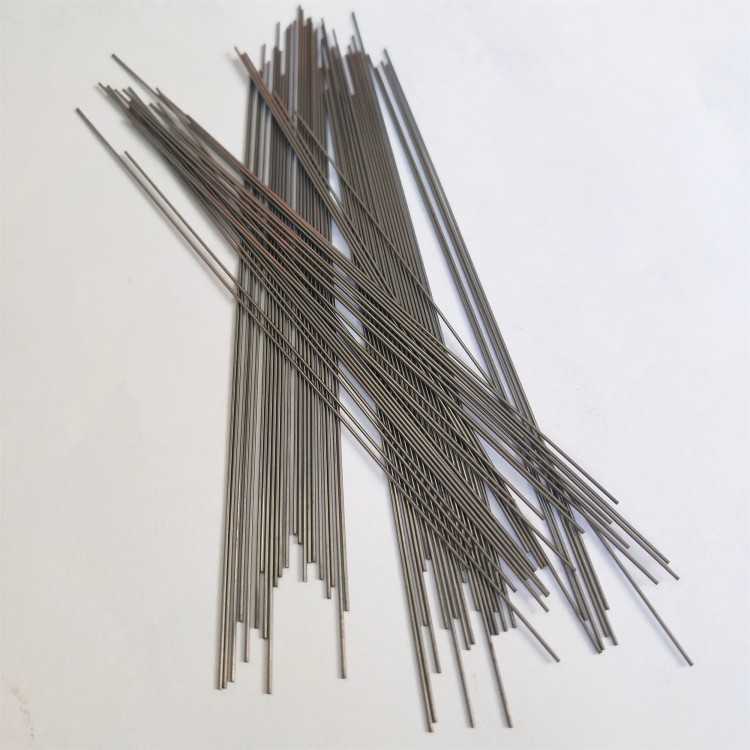

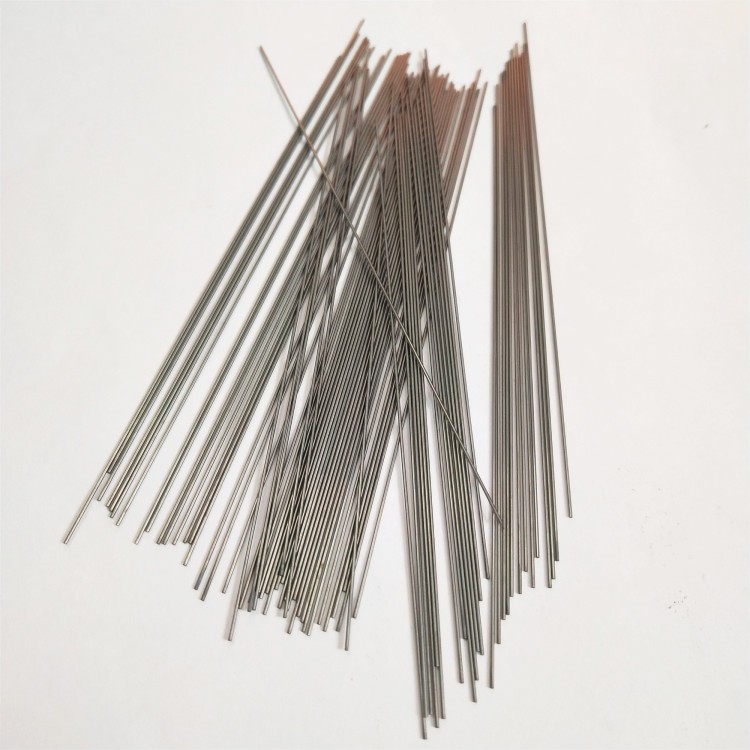

Blank/ground thin solid 10% cobalt cemented carbide round rod for drilling hole

Product Description

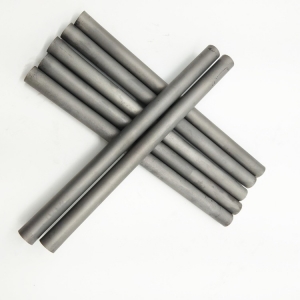

The tungsten carbide rods also can be called cemented carbide rods. They can be in sintered unground condition, high precision grinding and mirror polished. They’re widely used in machining carbon steel, wood, stone, aluminum , non-ferrous metals and titanium, cast iron , stainless steel, etc. The carbide rods are widely used for making PCB drills , drills , cutters, end mills &reamers , mold punches , core pins&hole drilling tools. They also can be used for making of cemented carbide stamping head, core bar and perforation tools, used as wear resistance parts of punching mold,measuring and cutting industry ,etc.

Grade of tungsten carbide rods

Grade	Density g/cm³	Hardness HRA	TRS (Mpa)	Recommended applications and performance
YG6	14.9	89.5	2150	With good wear resistance , suitable for hard wood, prosesisng original wood, bress rods, and cast iron
YG8	14.6	89	2320	Used for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YL10.2	14.5	92.5	3400	Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal

Features:

1. Made from 100% virgin raw material

2. HIP sintering

3. Stable chemical properties

4. High hardness, good compactness

5. Excellent performance and good wear / corrosion resistance

6. Blanks, high machining accuracy / precision

7. Various grades of tungsten carbide available

8. OEM customized sizes available

9. Factory’s offer

10. Strict products quality inspection

Diameter

Length

φ0.5-12mm,

Φ12.5-20mm,

Φ21-30mm

Or Based On Requirement

330mm,

330mm

Or Based On Requirement

Welcome to contact with us^_^

if you need the customized sizes and grades!

Common size list

Grinding			Blank
D		L	D		L
(mm)	Tol.(mm)	Tol.(+1mm)	(mm)	Tol.(mm)	Tol.(+3mm)
0.7	h6	330	1	+0.2	330
2	h6	330	2.2	+0.2	330
3	h6	330	2.7	+0.2	330
3.175	h6	330	3.2	+0.2	330
4	h6	330	3.7	+0.2	330
5	h6	330	4.2	+0.2	330
6.35	h6	330	4.7	+0.2	330
7	h6	330	5.2	+0.2	330
8	h6	330	5.7	+0.2	330
9	h6	330	6.2	+0.2	330
10	h6	330	6.7	+0.2	330
12	h6	330	7.7	+0.3	330
12.7	h6	330	8.2	+0.3	330
13	h6	330	8.7	+0.3	330
14	h6	330	9.2	+0.3	330
15	h6	330	9.7	+0.3	330
16	h6	330	10.2	+0.3	330
17	h6	330	10.7	+0.3	330
18	h6	330	11.2	+0.3	330
20	h6	330	12.2	+0.3	330
25	h6	330	14.3	+0.3	330
30	h6	330	16.2	+0.3	330
