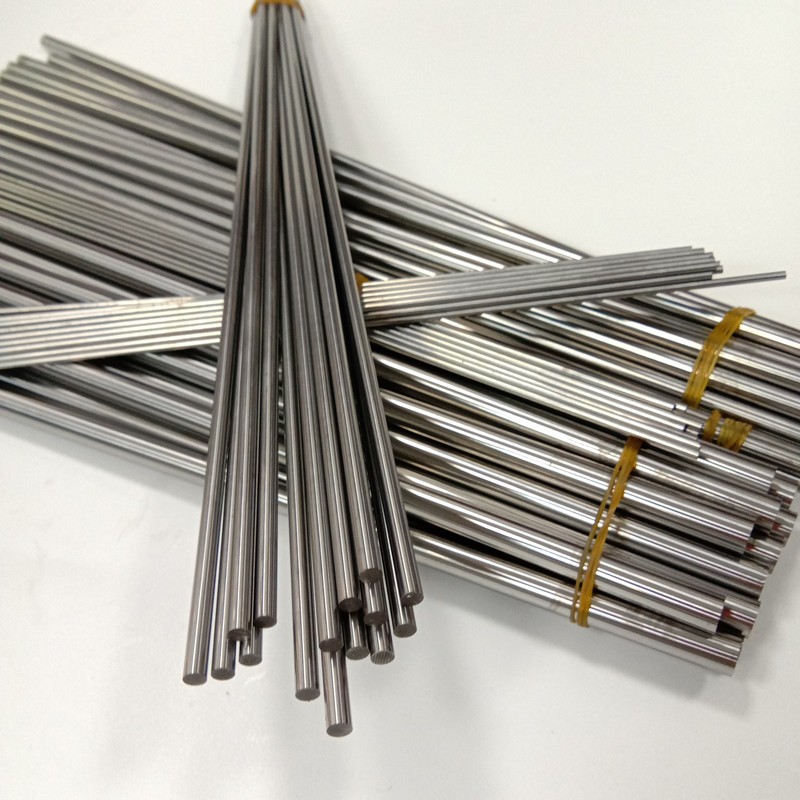

Tungsten Carbide Rods

Dia 12x330mm HRA92.5 Long Life Carbide Round Bar For Metal Milling Tools

Dia 12x330mm HRA92.5 Long Life Carbide Round Bar For Metal Milling Tools

Place of Origin： Zhuzhou, Hunan
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： ZF-R471
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

Dia 12x330mm HRA92.5 Long Life Carbide Round Bar For Metal Milling Tools

Tungsten carbide rods produced with high temperature resistance and high hardness and toughness, widely used in PCB micro drills, for making drills, end mill reamer,taps,burrs, etc.Also suitable for cast iron, non-ferrous metals, hard wood, common wood ect.

Material Physical Features

a) Grade: YL10.2

b) Composition: 10% Co+90% WC

c) Density: 14.5g/cm3

d) Hardness: HRA 92.5

c) T.R.S.: 3800-4000N/cm2

e) Grain Size: 0.6-0.8μm

Tungsten Carbide Rod Features

- Manufactured with good quality tungsten carbide material

- Dimension: Dia10/12/14*100/150/200/330mm any length can be cut

- Tolerance: Ground h6/h7..., blank(+0.3/0.5mm) based on requirement

- Type: Solid round bar

- Performance: good wear resistance and toughness, corrosion resistance, high temperature resistance,stable chemical properties.

- Main application is for making PCB drills, drills,endmills and reamers, wear parts, and stamping dies, measuring tools.
- Anti-deformation and deflection.
- Produces tungsten carbide rods with extrusion equipment and HIP sintering furnace

- 100% inspection before shipment which garantee good quality

- Customized: accepted

Our common size models:

Size range(DiaXL mm)	Tolerance
Size range(DiaXL mm)	D(blank, mm)	D (ground, mm)	L(mm)
Dia(0.4-5)x330	+0.3/+0.4	h6/h7	0/+2
Dia(6-20)x330	+0.3/+0.6	h6/h7	0/+2
Dia(21-40)x330	+0.5/1.0	h6/h7	0/+3
We are able to help you customized various diameter and length carbide rod

Application Industries:

- Paper

- packaging

- printing

- Non-ferrous metal processing

- Mechanical

- Chemical

- Petroleum

- Metallurgy

- Electronic

- Defense industries

Some grade information for Reference

Grade	Density g/cm3	Hardness HRA(hv)	T.R.S (M Pa)	Performances &applications recommended
YL10.2	14.5	92.5	3800	Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YG6	14.9	89.5	2150	Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG8	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG11	14.4	87.5	2260	Medium grain, for wear parts and mining tools
YG15	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YS2T	14.45	92.5	2800	Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YNi8	14.6	88.5	1710	This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.
