High Temperature Resistance Tungsten Carbide Tube For Thermocouple

High Temperature Resistance Tungsten Carbide Tube For Thermocouple

Place of Origin：
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade：
Minimum Order Quantity:10 pcs
Price:
Delivery Time:
Payment Terms:
Supply Ability:

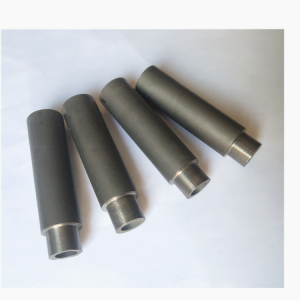

High Temperature Resistance Tungsten Carbide Tube For Thermocouple

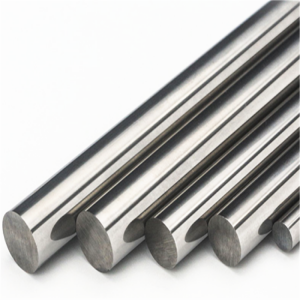

Our Carbide rod types

1. Unground Solid rods

2. Single Central hole rods

3. Double parallel hole rods

4. Ground Carbide rod

5. Chmafered rods

6. One side chamfered with weldon shank rods

7. Special customized rods

Detail Information

Material Physical Properties

a) Grade: YG10

b) composition: 10% Co+90% WC

c) Grain Size: 0.8-1.2μm

d) Hardness: HRA 88

c) T.R.S.: 2300N/cm2

e) Density: 14.3-14.5g/cm3

Products Properties

- Manufactured with good quality tungsten carbide material

- Dimension: OD8-25mm ID3-12mm, Length:100-600mm

- Surface: Blank or grinding

- Type: solid round bar

- Performance: good wear resistance, corrosion resistance, high temperature resistance,stable chemical properties.

- Application: Thermocouple protection tube

- Application temperature: 600°C for long term using, 1000°C for instant using

- Application Industry: Power plant, coal plant, cement plant, Waste dump

- lifetime: one to two years for normal using

- Features: one end sealed for 5mm thickness(not copper soldering), integrated by three times sintered
- Produces with extrusion equipment and HIP sintering furnace

- 100% inspection before shipment which garantee good quality

- Customized: accepted

Other Application Industries of tugnsten carbide rod:

- Paper

- packaging

- printing

- Non-ferrous metal processing

- Mechanical

- Chemical

- Petroleum

- Metallurgy

- Electronic

- Defense industries

Our common size models:

Size range(ODXIDXL mm)	Detail size and blank tolerance
Size range(ODXIDXL mm)	OD( mm)	ID (mm)	L(mm)
ODxIDxL	12	6/6.5	100-500mm
ODxIDxL	14	6/6.5/7/8/10	100--500mm
ODxIDxL	15	6/6.5/7/8/10	100--500mm
ODxIDxL	16	6/6.5/7/8/10/	100-500mm
ODxIDxL	18	6/6.5/7/8/10/12	100-500mm
ODxIDxL	20	6/6.5/7/8/10/12	100-500mm
ODxIDxL	22	6/6.5/7/8/10/12	100-500mm
ODxIDxL	25	6/6.5/7/8/10/12	100-500mm
ODxIDxL	40	6/6.5/7/8/10/12/30	100-300mm
We are able to help you customized various diameter and length carbide rod

Some grade information for Reference

Grade	Density g/cm3	Hardness HRA(hv)	T.R.S (M Pa)	Performances &applications recommended
YL10.2	14.5	92.5	3800	Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials.
YG6	14.9	89.5	2150	Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron.
YG8	14.6	89	2320	Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
YG10	14.5	88	2380	medium grain size, having good wear resistance and toughness, suitable for wear parts
YG11	14.4	87.5	2260	Medium grain, for wear parts and mining tools
YG15	14.1	86.5	2400	Medium grain, for mining tools, cold heading and punching dies
YS2T	14.45	92.5	2800	Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools
YNi8	14.6	88.5	1710	This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy.
