High density alloy tungsten weights pinewood derby car weight tungsten cylinder

High density alloy tungsten weights pinewood derby car weight tungsten cylinder

Place of Origin： China
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： W1
Minimum Order Quantity:10 pcs
Price:USD 45-58/kg
Delivery Time:7-15 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:

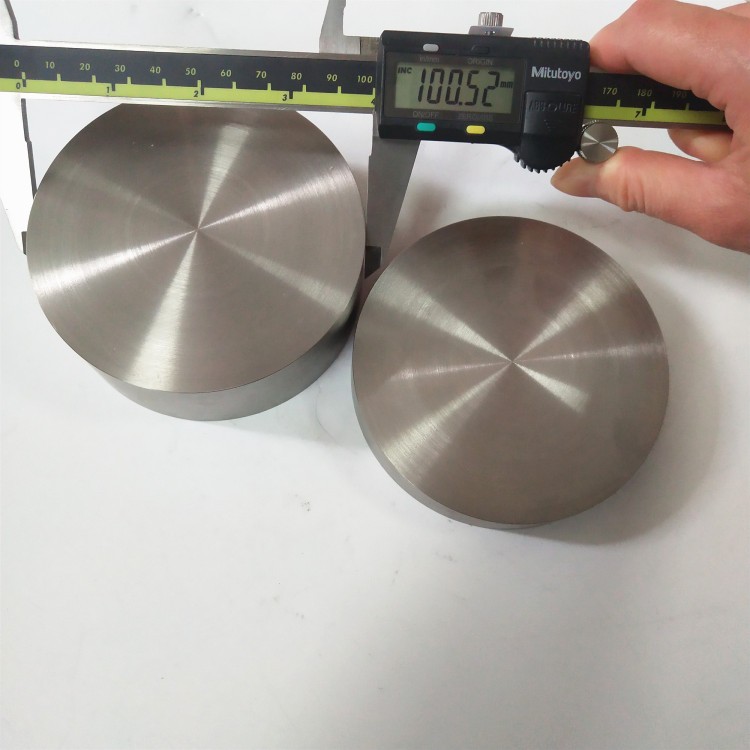

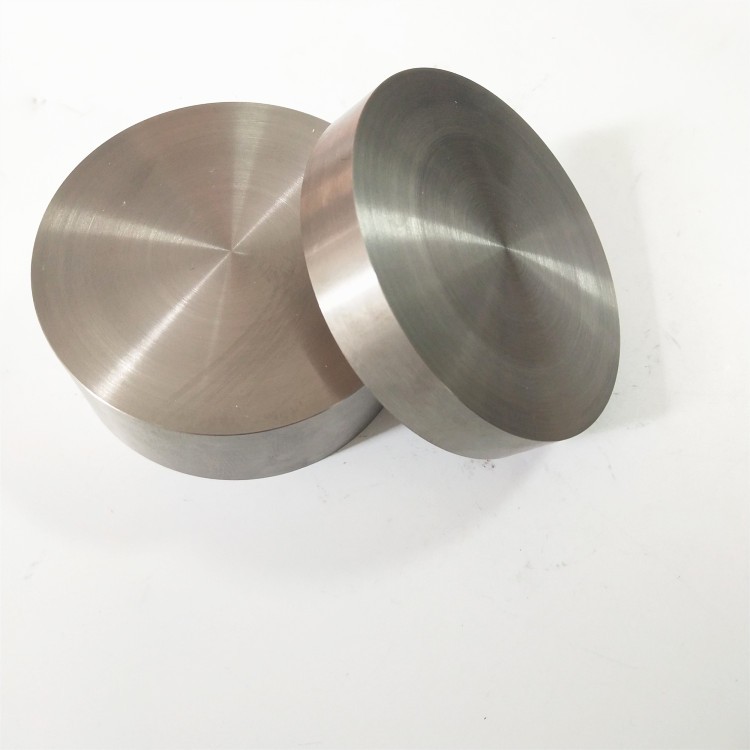

High density alloy tungsten weights pinewood derby car weight tungsten cylinder

Product Description:

Grade:W1 99.95%,95WNiFe alloy

Material:Pure Tungsten or WNiFe alloy

Shape:cylinder,cube,column,block.

Density:19.3g/cm3,18.0-18.5g/cm3

Cylinder Dimensions:3/8''( 9.525mm)

Unit weight:0.5 oz,0.125 oz,0.25 oz, 0.2 oz etc or as per your request.

Cube:1/4''(6.35*6.35*6.35mm),10*10*10mm,24*24*24mm 1kg cube,2 kg cube or as per request.

Material Physical and mechanical properties:

Alloy Type	90 W	92.5 W	93W	95 W	97 W
(%)>	7 Ni	5.25 Ni	5Ni	3.5 Ni	2.1 Ni
	3 Fe	2.25 Fe	2Fe	1.5 Fe	0.9 Fe
MIL-T-21014	Class 1	Class 1	--	Class 3	Class 4
SAE-AMS Abby Pan-T-21014	Class 1	Class 2	--	Class 3	Class 4
ASTM B777-87	Class 1	Class 2	--	Class 3	Class 4
Typical Density	17.1	17.5	17.6	18	18.5
Typical Hardness RC	25	26	26	27	28
Yield Strength Min	650~850	650~850	650~850	600~750	620~670
(Mpa)
Elongation %	20~25	18~24	15~20	8~13	2~5
Magnetic	Slightly	Slightly	Slightly	Slightly	Slightly

We Guarantee:
produced with advanced equipments and process.
high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
all products go through in-process and final inspection.
Quality Control System and strict inspection.
stable and continuous production ability.
free online technical service available.
OEM and ODM are accepted as well.
Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for
consistent performance capacity of your tools.
Undertake orders of non-standard sizes at customer's requests.

We can offer a lot of type tungsten carbide rods:
un-gound, finish-ground in metric and imperial diameters;2. Carbide rods with central coolant duct;
Fixed length Carbide Rod
Random Length carbide rod
Carbide rods with chamfered end.

Our more Products

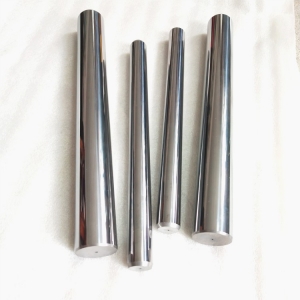

Tungsten Carbide rod
Tungsten Carbide Sealed Ring
Tugnsten Carbide Wear parts
Tugnsten Carbide Dies
Tungsten Carbide Non-standard parts

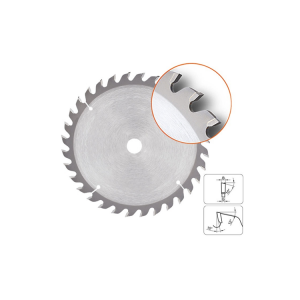

Tungsten Carbide Circular Blade
