Factory supply ground original tungsten carbide thin wall tube, cemented carbide pipe
Applications:
It is suitable for the production of various types electrical machine & electronic progressive dies and punches. And widely used in ceramics, printing machine, plastic, rubber, leather industry and cutting machines, CNC machine, CNC, PCB micro drill bits, etc.
Details of Tungsten Solid Carbide Rods
| Product name | Solid carbide Rod / Bar / Stick |
| OD tolerance | 0.5um |
| Surface fineness | Ra0.025a |
| Sizes | Diamter:Φ0.5-Φ0.35mm,Length:100-330mm(diameter is Φ1.0-Φ6.0mm,lenght can up 700mm) |
| Type | Round(solid,hollow) |
| Grade | YL10.2, K20,K30 ,YL50, etc. |
| Material | 100% Tungsten Raw Materials |
| Physical performance | High Precision , hardness,strength, wear resistance . |
| Application | For production various types electrical machine & electronic progressive dies and punches.And ceramics, printing machine, plastic, rubber, leather industry and cutting machines. |
| Non-standard or Tolerance | Can be customized |

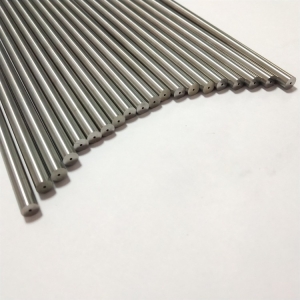

1)Solid tungsten carbide rod/bar/stick
| Diameter(D) | Tolerance | Standard length |
| Φ0.5~5.5 | +0.30~+0.45 | 330 (+5.0/0) |
| Φ6.0~40.0 | +0.20~+0.60 | 330(+5.0/0) |

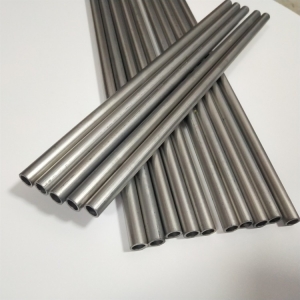

2)Hollow tungsten carbide rod/bar/stick
| Outer Diameter | Tolerance of Outer Diameter | Diameter of Hole | Tolerance of Hole | Standard Length |
| Φ2.5~8.0 | +0.2~+0.5 | 0.3~1.5 | +/-0.15 | 330 (+5.0/0) |
| Φ10.0~30.0 | +0.3~+0.8 | 2.0~5.0 | +/-0.30 | 330 (+5.0/0) |
Dimensions of Tungsten Carbide Rods
| Dimensions of Tungsten Carbide Rods |
| Dimensions | Dimensions |
| Type | Tolerance of diameter(mm) | Tolerance of length(mm) | Type | Tolerance of diameter(mm) | Tolerance of length(mm) |
| Φ3.0×320 | ±0.5/0.6 | 0/+5.0 | φ8.0×45 | ±0.5/0.6 | 0/+5.00 |
| Φ3.5×320 | ±0.5/0.6 | 0/+5.0 | φ8.0×50 | ±0.5/0.6 | 0/+5.0 |
| Φ4.0×320 | ±0.5/0.6 | 0/+5.0 | Φ8.0×320 | ±0.5/0.6 | 0/+5.0 |
| φ4.5×320 | ±0.5/0.6 | 0/+5.0 | φ8.6×320 | ±0.5/0.6 | 0/+5.0 |
| φ4.0×150 | ±0.5/0.6 | 0/+5.0 | φ8.0×150 | ±0.5/0.6 | 0/+5.0 |
| φ5.0×36 | ±0.5/0.6 | 0/+5.0 | Φ9.0×320 | ±0.5/0.6 | 0/+5.0 |
| φ5.0×80 | ±0.5/0.6 | 0/+5.0 | φ10.6×320 | ±0.5/0.6 | 0/+5.0 |
| φ5.0×40 | ±0.5/0.6 | 0/+5.0 | φ10.0×65 | ±0.5/0.6 | 0/+5.0 |
| φ5.0×100 | ±0.5/0.6 | 0/+5.0 | φ10.0×60 | ±0.5/0.6 | 0/+5.0 |
| Φ5.0×320 | ±0.5/0.6 | 0/+5.0 | φ10.0×55 | ±0.5/0.6 | 0/+5.0 |
| Φ5.5×320 | ±0.5/0.6 | 0/+5.0 | φ12.0×78 | ±0.5/0.6 | 0/+5.0 |
| Φ6.0×100 | ±0.5/0.6 | 0/+5.0 | φ12.0×150 | ±0.5/0.6 | 0/+5.0 |
| Φ6.0×320 | ±0.5/0.6 | 0/+5.0 | φ12.0×130 | ±0.5/0.6 | 0/+5.0 |
| Φ6.6×320 | ±0.5/0.6 | 0/+5.0 | φ12.6×320 | ±0.5/0.6 | 0/+5.0 |
| Φ7.0×320 | ±0.5/0.6 | 0/+5.0 | φ15.6×320 | ±0.5/0.6 | 0/+5.0 |
| φ7.0×60 | ±0.5/0.6 | 0/+5.0 | φ16.0×100 | ±0.5/0.6 | 0/+5.0 |
| φ7.6×320 | ±0.5/0.6 | 0/+5.0 | φ16.6×320 | ±0.5/0.6 | 0/+5.0 |
| φ8.0×80 | ±0.5/0.6 | 0/+5.0 | φ18.6×320 | ±0.5/0.6 | 0/+5.0 |
| φ8.0×40 | ±0.5/0.6 | 0/+5.0 | φ25.0×320 | ±0.5/0.6 | 0/+5.0 |
Tungsten Carbide Grade Information
| Grade | Density g/cm3 | Hardness HRA(hv) | T.R.S(M Pa) | Performances &applications recommended |
| YG6 | 14.9 | 89.5 | 2150 | Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron. |
| YG8 | 14.6 | 89 | 2320 | Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YG11 | 14.4 | 87.5 | 2260 | Medium grain, for wear parts and mining tools |
| YG15 | 14.1 | 86.5 | 2400 | Medium grain, for mining tools, cold heading and punching dies |
| YS2T | 14.45 | 92.5 | 2800 | Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools |
| YL10.2 | 14.5 | 92.5 | 3400 | Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials. |
| YNi8 | 14.6 | 88.5 | 1710 | This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy. |
| Grade | ISO Grade | g/cm3 Density g/cm3 | Hardness HRA> | T.R.S>N/mm² TRS > | Performances or recommended applications |
| Conventional grades |
| YG3 | K05 | 15.20-15.40 | 91.5 | 1400 | Medium grain, for finishing machining of cast iron and non-ferrous metals |
| YG3X | K05 | 15.20-15.40 | 92.0 | 1300 | Fine grain, for finishing machining of cast iron and non-ferrous metals |
| YG4C |
| 15.05-15.25 | 90 | 1620 | Coarse grain, for percussion drill bits and mining inserts |
| YG6 | K20 | 14.85-15.05 | 90.5 | 1860 | Medium grain, for rough machining of non-ferrous metals |
| YG6A | K10 | 14.85-15.05 | 92.0 | 1600 | Fine grain, for drawing dies and woodworking tools |
| YG6X | K10 | 14.85-15.0 | 91.7 | 1800 | Fine grain, for cutting of non-ferrous metals |
| YL10.1 | K12-K25 M10-M30 | 14.9 | 91.5 | 1900 | with good wear-resistance and good impact- resistance,Suitable for general drill tool wear parts. |
| YG8 | K30 | 14.60-14.85 | 89.7 | 2060 | Medium grain, for drawing dies |
| YG8A | K30 | 14.6-14.85 | 90.0 | 2000 | Medium grain, for the drawing dies and wood-working |
| YG8X | K30 | 14.60-14.85 | 90.5 | 2000 | Fine grain, high hardness and oxidation resistance at high temperatures and good impact toughness |
