Ground Tungsten Carbide Rod

Zhuzhou Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Tungsten Carbide Rod

Zhuzhou Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Tungsten Carbide Rod

Place of Origin： China
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： K10,K20,K30
Minimum Order Quantity:10 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

Zhuzhou Carbide Solid Round Bar,Solid Carbide Rod Price, High Quality Tungsten Carbide Rod

The Features of solid carbide rod :

1) It have better wear resistance, higher toughness, high precision, better deformation and fracture resistance, results in a long life and good size accuracy;

2) Adopt advanced automatic extrusion equipment to produce ;

3) HIP sintering and precision grinding to ensure have good performance;

4) Both blank and finished available;

5) Can reach a mirror effect surface after accurate grinding and polishing.

The high quality carbide rod ’ types and grades :

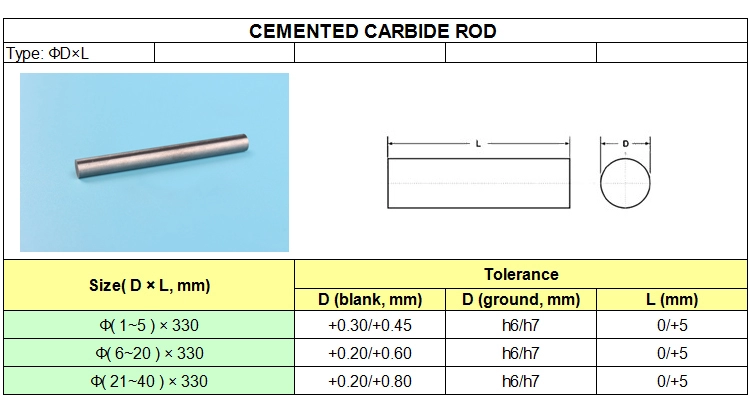

Below are picture and drawing for your reference. For more details, please inform us.

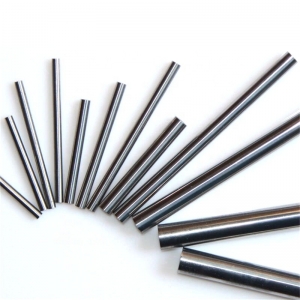

high quality solid tungsten carbide rod, cemented carbide rod

Applications of Solid Tungsten Carbide Rods
solid tungsten carbide rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel-based alloy, titanium alloy, and nonferrous metals. Various carbide grades with stable properties have been widely recognized by worldwide makers of tools. Besides, solid tungsten carbide rods are widely used processed as HSS Cutting tool, carbide end mills, carbide cutting tool, NAS cutting tool, carbide end mill, aerospace cutting tool, carbide drill, high speed steel, milling cutter
Core drill, tapered end mills, metric end mills, miniature end mills, pilot reamer, electronics cutter, step drill, metal cutting saw, double margin drill, gun barrel, angle milling cutter, carbide burrs, carbide tipped cutter.

Advantge of Our tungsten carbide rod
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable

Detail Production Information:

Key Features:

1.High melting point (3410°C)
2. low thermal expansion
3.High resistance
4. Vapor pressure is low
5. Good thermal conductivity
6. High density

Recommanded grades for your reference

Grade	ISO Range	Cobalt%	Density g/cm3	Hardness HRA
YG8	K30	8	14.8	89.5
YG6	K30	6	14.95	90.5
YG6X	K10	6	14.95	91.5
YL10.2	K30	10	14.5	91.8
YG15	K40	15	14	87.5

Common size list

Grinding			Blank
D		L	D		L
(mm)	Tol.(mm)	Tol.(+1mm)	(mm)	Tol.(mm)	Tol.(+3mm)
0.7	h6	330	1	+0.2	330
2	h6	330	2.2	+0.2	330
3	h6	330	2.7	+0.2	330
3.175	h6	330	3.2	+0.2	330
4	h6	330	3.7	+0.2	330
5	h6	330	4.2	+0.2	330
6.35	h6	330	4.7	+0.2	330
7	h6	330	5.2	+0.2	330
8	h6	330	5.7	+0.2	330
9	h6	330	6.2	+0.2	330
10	h6	330	6.7	+0.2	330
12	h6	330	7.7	+0.3	330
12.7	h6	330	8.2	+0.3	330
13	h6	330	8.7	+0.3	330
14	h6	330	9.2	+0.3	330
15	h6	330	9.7	+0.3	330
16	h6	330	10.2	+0.3	330
17	h6	330	10.7	+0.3	330
18	h6	330	11.2	+0.3	330
20	h6	330	12.2	+0.3	330
25	h6	330	14.3	+0.3	330
30	h6	330	16.2	+0.3	330
