Factory Sell Purity 99.95% Molybdenum block, plate with superior quality custom size
Place of Origin | China |
Brand Name | ZhuZhou Top |
Certification | ISO9001:2015 |
Grade | Mo1 |
Minimum Order Quantity | 10 pcs |
Price | USD 55-75/kg |
Delivery Time | 5-10 days |
Payment Terms | T/T, western union, LC etc |
Supply Ability | 10000kg/month |

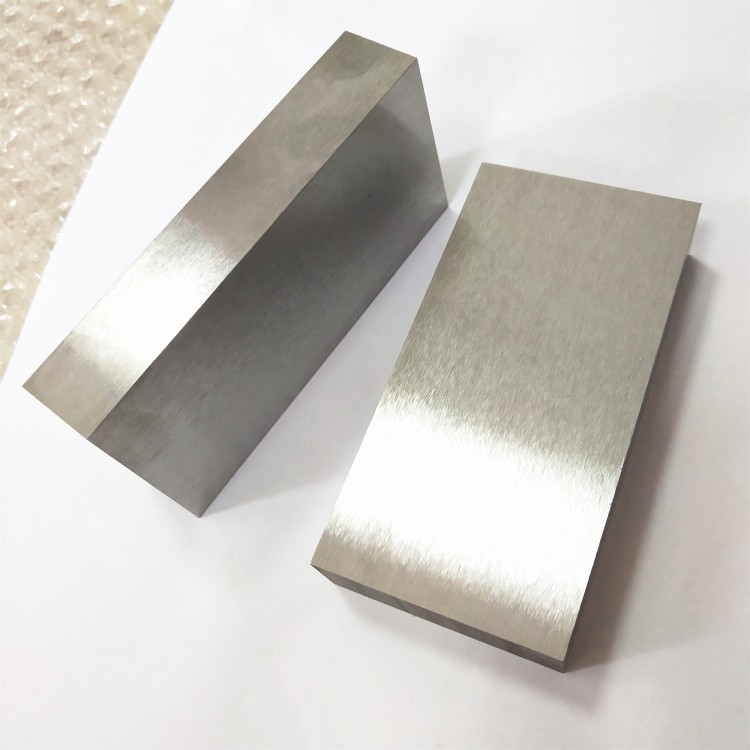

Factory Sell Purity 99.95% Molybdenum block, plate with superior quality custom size
Pls feel free to contact us you have any requirments, any inquiry is welcomed!
Contact person:Sharon Li
Whatapp:+86 18973341595
WeChat;18973341595
Email address:sharon@xtjqxcl.com
Website:www.qcarbide.com
Product Description
1. Molybdenum block is resistant to high temperature and owns favorable heat conductivity, toughness and low expansion coefficient. So it’s an ideal component in aerospace engineering and military field. molybdenum block
2. Covering small size of thermal neutron capture enables molybdenum block become structural material in nuclear reactor.
3. Pure molybdenum materials are often used in MOCVD or ion implantation.
4.We can make logo follow your requirements
molybdenum block
Advantage
Molybdenum plate has so many advantages, such as high density, high melting point, small volume, excellent hardness, superior wearing resistance, high ultimate tensile strength, high ductility, high temperature resistance, etc. Molybdenum alloys are widely used in many industrial sectors.
Molybdenum alloy plate can be easily used for car weighting .The product also is manufactured as the parts of military defense, extrusion die, various counterweights, such as yacht counterweights, vehicle counterweights, airplane counterweights, helicopter counterweights, boat counterweights, tank counterweights, etc.Usually, molybdenum alloy cylinder could be manufactured as the parts for military applications, extrusion die and various kinds of counterweights.
Specification:
Purity:>=99.95%
Density:>=10.2g/cm3
Thickness :>=0.1mm
Width: 20-600mm
Length: Less than 2000mm
Standard:ASTM,GB3876-83
Molybdenum block | ||||||
Thickness(mm) | tolerances(mm) | width(mm) | tolerances(mm) | length(mm) | tolerances(mm) | flatness(%) |
0.1mm | ±0.01 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
0.2mm | ±0.02 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
0.3mm | ±0.02 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
0.4mm | ±0.03 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
0.5mm | ±0.03 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
0.8mm | ±0.05 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
1mm | ±0.06 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
1.5mm | ±0.06 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
2mm | ±0.06 | 600mm | ±1mm | 2000mm | ±5mm | < 2% |
3mm | ±0.2 | 500 | ±1mm | 500 | ±2mm | < 2% |
4mm | ±0.2 | 500 | ±1mm | 500 | ±2mm | < 2% |
Our testing for molybdenum block | |||||
Fe | Ni | C | Al | O | N |
0.004 | 0.002 | 0.0028 | 0.0005 | 0.005 | 0.002 |
Si | Ca | Mg | Cd | Sb | Sn |
0.0013 | < 0.001 | < 0.0005 | < 0.001 | < 0.0005 | < 0.0005 |
P | Cu | Pb | Bi | Mo | |
< 0.001 | < 0.0005 | < 0.0005 | < 0.0005 | >99.95% |
Molybdenum products | Molybdenum plate/sheet/foil (min 0.05mm); MoLa molybdenum tray molybdenum rod/bar/wire; molybdenum alloy MoLa box Molybdenum crucible,molybdenum boat/container,molybdenum tube. Molybdenum heating element for vacuum furnace and high temperature furnace. Molybdenum part made to required drawings. |
Molybdenum alloy | TZM alloy,MoLa alloy. molybdenum block |
Tungsten products | Tungsten plate/sheet/foil (min 0.05mm); molybdenum alloy MoLa boMoLa tray Tungsten rod/bar/wire; molybdenum block Tungsten crucible,tungsten boat/container,tungsten tube. Tungsten heating element for vacuum furnace and high temperature furnace. Tungsten part made to customer's drawings. |
Tungsten alloy | WCu alloy,WLa,WNiFe and WNiCu heavy alloy. molybdenum block |
We are based in Hunan, China, start from 2011,sell to Southeast Asia(18.00%),North America(11.00%),South America(10.00%),Western Europe(9.20%),Eastern Asia(8.00%),Eastern Europe(7.00%),Northern Europe(5.00%),South Asia(5.00%),Southern Europe(3.00%),Mid East(2.00%),Central America(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
tungsten carbide rod,tungsten carbide bar,tungsten carbide wear parts,tungsten carbide blanks,tungsten carbide cutting tools tips
4. why should you buy from us not from other suppliers?
We have over 10 years experience in tugnsten carbide manufacturing and developing. Perfect quality control systerm. High products quality and speedy delivery. professional sales team. Customization is accepted.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
