Plunger

High Pressure Pump Tungsten Carbide Plunger Dia15x277

Place of Origin： Zhuzhou, Hunan
Brand Name： ZhuZhou Top
Certification： ISO9001:2015
Grade： K10 K20 K30 YL10.2 YN8 YN9
Minimum Order Quantity:3 pcs
Price:Negotiable
Delivery Time:3-15days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcome to contact me

Sharon Chen(Ms)

Email:sharon@xtjqxcl.com

Mobile/Whatsapp:0086-18973341595

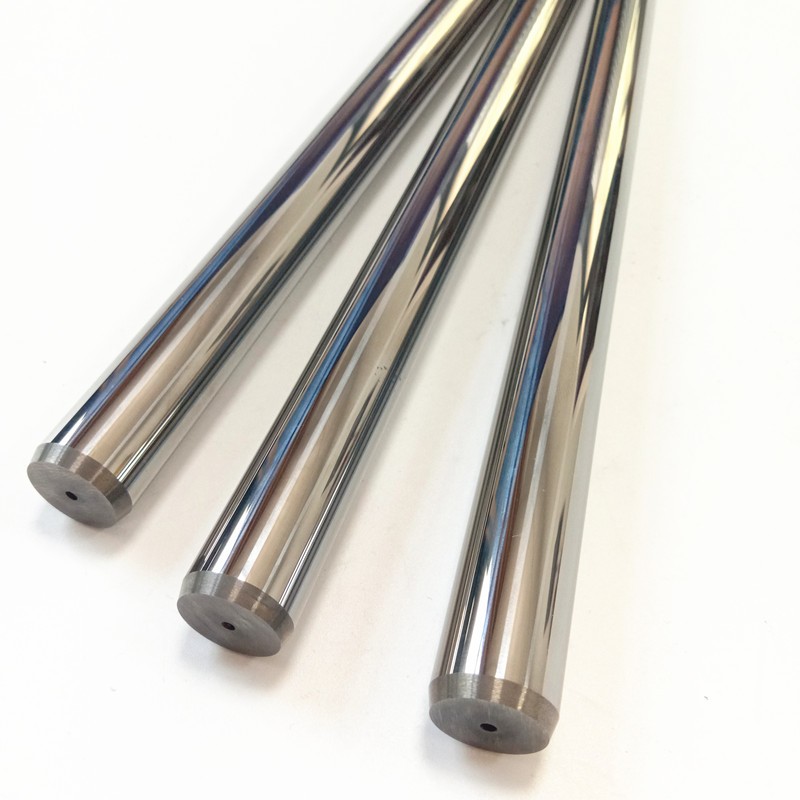

High Pressure Pump Tungsten Carbide Plunger Dia15x277

Solid tungsten carbide plungers provide unequaled performance in a critical, demanding, and dangerous environment of 50,000 psi and 750,000,000 cycles before repair. Extremely tight tolerances and finishes along with premium quality materials and experienced knowledge of the service demands, result in smooth operating cylinders and packing life.

Detail Information

1. Material: WC+Ni/WC+Co

2. Grade:YN8 YG11 YG8

3. Hardness: HRA89-90 Bending strength:3500

3. Size: Dia15*277mm dia33.33*270mm Customized

4. Features: High Wear Resistance, Corrosion Resistance

5. Surface finishing: Ra0.2-0.4

6. Straightness:0.005

7. Technology: HIP sintering

All technical data only for reference. We can make based on requirement

Grade Information for plunger

Grade	Density(g/cm3)	Hardness(HRA)	Toughness(N/mm2)	Composition
YG6	14.9	89.5	2150	Co 6%
YG8	14.6	89	2320	Co 8%
YG11	14.3	88	2500	11%Co
YN6	14.8-15	91	2100	Ni 6%
YN8	14.2	90.5	2300	Ni 8%
YN9	14.7	89.5	2200	Ni 9%
YN12	14.3	86.5	2250	Ni 12%

Application Range:
our tungsten carbide plunger widely used in high pressure pump, high pressure cleaning pump, High-power high-pressure pump group, High Pressure Pump Automatic Set,Pipe dredge, High-pressure oil injection machinery etc.
Our advantage:
1. Material: using high quality raw material
2. Production Procedure: Powder preparing- Pressing-HIP sintering- Processing-Finishing
3. Perfect quality control systerm: ISO9001:2015
4. Various dimension for choosing
5. Various grade for choosing based on your application. the hardness is from HRA82 to HRA92.5
6. We also accept manufacturing based on your drawing

With unmatched wear resistant and a high polished finish for extreme pressure pumping of various fluids and gasses, our high pressure plungers will increase your pump’s internal life cycle.
