Tungsten Carbide Blade

Solid Carbide HRC58 End Mills for metal working Image

Solid Carbide HRC58 End Mills for metal working - 0

Solid Carbide HRC58 End Mills for metal working - 1

Solid Carbide HRC58 End Mills for metal working

Brand Name	ZhuZhou Top
Certification	ISO9001:2015
Minimum Order Quantity	10 pcs
Price	negotiable
Delivery Time	10 days
Payment Terms	T/T, Wstern uinion, bank

Send E-mail

Description
Basic Information

FOR MORE QUESTION, PLEASE CONTACT ME

Contact Person:Ms Sharon Li

EMAIL:sharon@xtjqxcl.com

MOBILE: +86 18973341595(wechat/whatsapp)

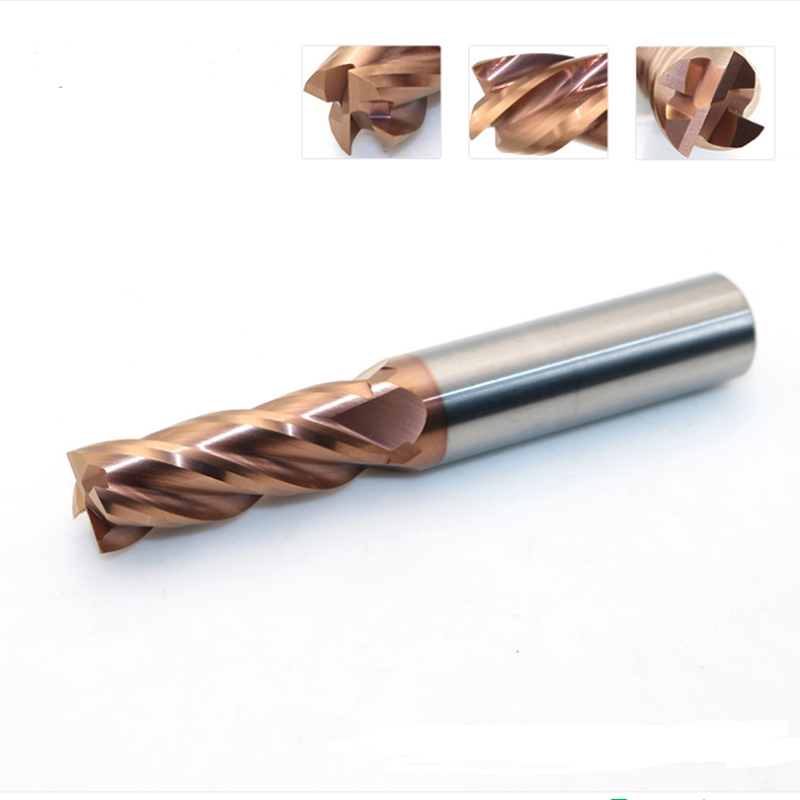

Solid Carbide HRC58 End Mills for metal working

Super Raw Material

Item Grade	HRC45 (YG10X )	HRC55 (YL10.2 & WF25)	HRC60 (Germany K44 &K40)	HRC65 (Sandvik H10F)
Details	Grain size 0.7um Co10% Flexural strength 3320N/mm2	Grain size 0.6um Co10% Flexural strength 4000N/mm2	Grain size 0.5um Co12% Flexural strength 4300N/mm2	Grain size 0.5um Co10% Flexural strength 4300N/mm2

1.Fully enables running at rough machining parameters, resulting in finish surface quality.

2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
3.The coating provides longer tool-life or increased cutting-values.
4.Suitable for all types of steel or metal.

1.raw material	100% virgin material carbide rods
2.coating	hrc45 is ALTin, HRC55 is Tisin, hrc63 is blue naco coating
3.OEM and ODM	oem brand is welcome, colorful sticker and laser logo is free
4.carbide rods	HRC45 is YG10X, hrc55 is YL10.2, hrc63 is japan carbide rods
5.coating color	hrc45 is black, hrc55 is copper, hrc63 is blue nano

high quality 4 flute tungten carbide end mill HRC55(1)

Specification	Flute Dia(φ)	Flute Length (C)	Shank Dia(D)	Overall Length(L)
Φ1x3Cx4x50L	1.0	3	4	50
Φ2x6Cx4x50L	2.0	6	4	50
Φ3x8Cx4x50L	3.0	8	4	50
Φ4x10Cx4x50L	4.0	10	4	50
Φ5x13Cx6x50L	5.0	13	6	50
Φ6x15Cx6x50L	6.0	15	6	50
Φ8x20Cx8x60L	8.0	20	8	60
Φ6x20Cx6x75L	6.0	20	6	75
Φ8x25Cx8x75L	8.0	25	8	75
Φ10x25Cx10x75L	10.0	25	10	75
Φ12x30Cx12x75L	12.0	30	12	75
Φ10x40Cx10x100L	10.0	40	10	100
Φ12x45Cx12x100L	12.0	45	12	100
Φ14x40Cx14x100L	14.0	40	14	100
Φ16x40Cx16x100L	16.0	40	16	100
Φ18x40Cx18x100L	18.0	40	18	100
Φ20x45Cx20x100L	20.0	45	20	100

Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
