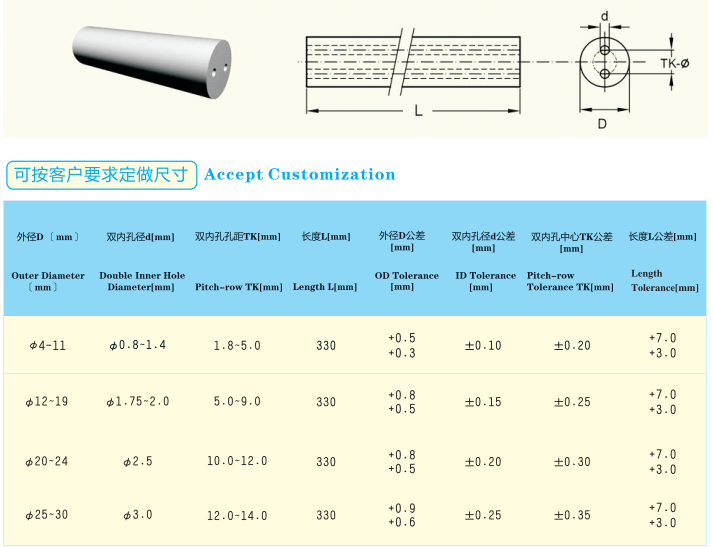

Sintered tungsten cemented carbide round rod with double straight hole
| Place of Origin | China |
| Brand Name | ZhuZhou Top |
| Certification | ISO9001:2015 |
| Grade | ZF0039 |
| Minimum Order Quantity | 10 pcs |
| Price | USD 55-65/kg |
| Delivery Time | 7-15 days |
| Payment Terms | 100% TT before shiping |
| Supply Ability | 100000 pcs/month |
Sintered tungsten cemented carbide round rod with double straight hole
Tungsten Cemented Carbide Grade:
| Grade | ISO Code | Chemical Component (%) | Grain size um | Physial Mechanical Properties (≥) | ||||
| WC | Co | Others | Density g/cm3 | Hardness (HRA) | T.R.S N/mm2 | |||
| D10UF | K05-K15 | 93 | 6 | 1 | 0.6 | 14.70 | 93.0 | 2600 |
| D30UF | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 92.0 | 3800 |
| D30SF | K20-K30 | 89 | 10 | 1 | 0.5 | 14.40 | 92.5 | 4000 |
| D40SF | K40 | 87 | 12 | 1 | 0.4 | 14.30 | 92.5 | 4200 |
| DB10X | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 91.5 | 3800 |
| DP12X | K30-K40 | 87 | 12 | 1 | 0.6 | 14.15 | 91.0 | 3300 |
| DP13X | K40 | 86 | 13 | 1 | 0.8 | 14.10 | 90.5 | 4400 |
| YG6 | K05-K10 | 93 | 6 | 0 | 1.2 | 14.95 | 91.0 | 2600 |
| YG6X | K10 | 93 | 6 | 0 | 1.0 | 14.95 | 92.0 | 2500 |
| YG8 | K20-K30 | 92 | 8 | 0 | 1.2 | 14.70 | 90.0 | 2800 |
| YG10X | K30-K40 | 89 | 10 | 1 | 0.8 | 14.50 | 91.0 | 3500 |
| YG15 | K40 | 85 | 15 | 0 | 1.2 | 14.00 | 87.5 | 4500 |
| YG25 | -- | 75 | 25 | 0 | 1.2 | 13.15 | 82.5 | 4800 |
Application of Our Tungsten rod:
Tungsten rod are used for cutting tool. The advantages of our tungsten carbide rod are smooth, good wear-resistance, good hardness, fast cutting speed and have a long-lifetime. Unlimited tracks of grades and sizes of carbide plates are available in our company.
Product Detail:
1. Material: 100%virgin WC+CO, WC+TiC+TaC+Co
2. Specification: 4*1mm. 4*2mm, 12*8, 12*9 according to customer requirement
3. Property:high hardaness,good wear-resistance,long lifetime
4. Surface:Grinding or blank
5. Grade: YG6/YG8/YG8C/YG11/YG11C/YL10.2/YG10X/YG12X etc
7. Thickness: 1.0 mm to 100.0 mm
Advantge of Our tungsten carbide rod
1. We are factory ,guarantee competitive price and high quality.
2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)
4. 100% QC inspection Before Shipment.
5. We guarantee that all of our products are used with 100% Virgin Raw Material.
6. Customization is avaliable
Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
